LED Transformer 250W 24V dimmable TRIAC 0-10V NV

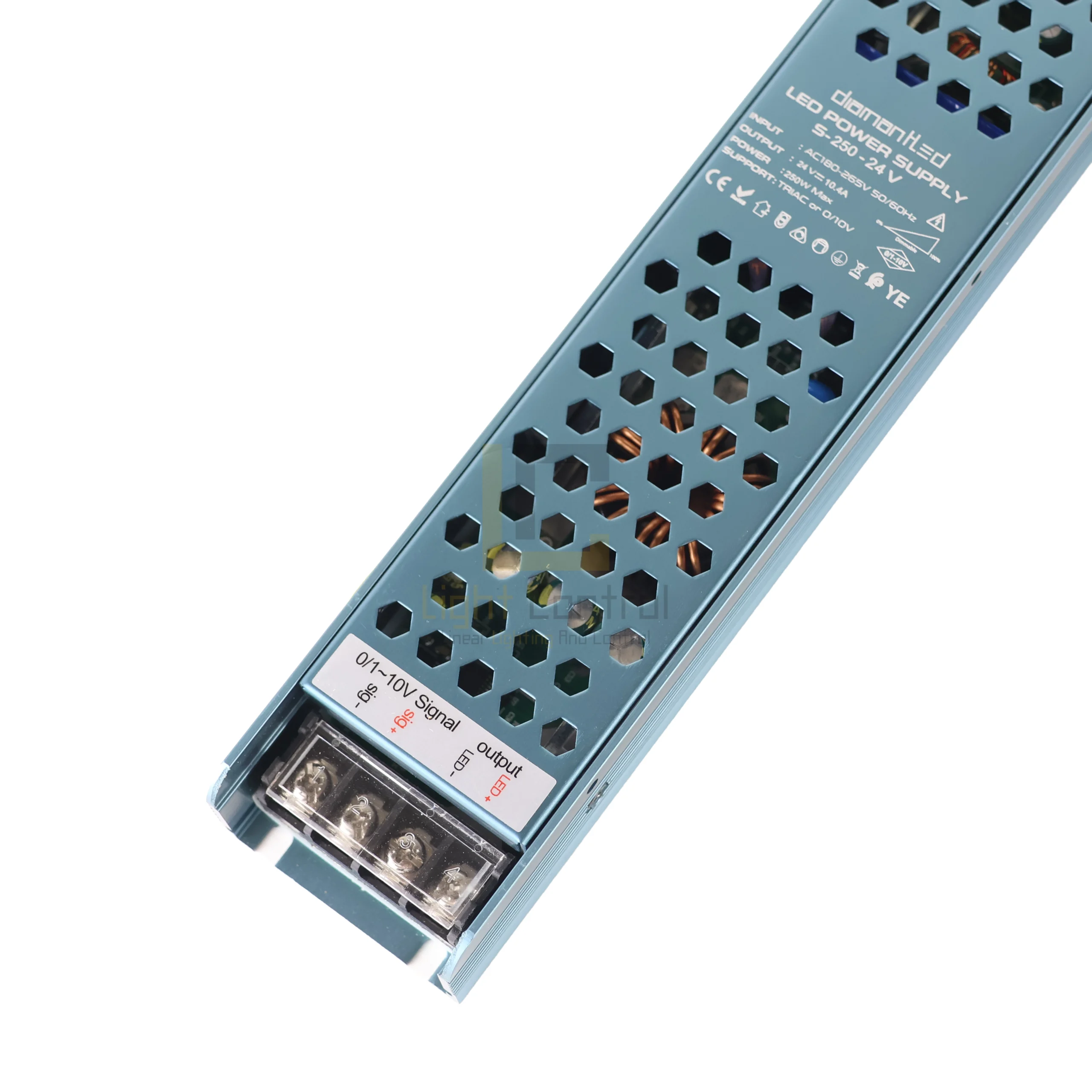

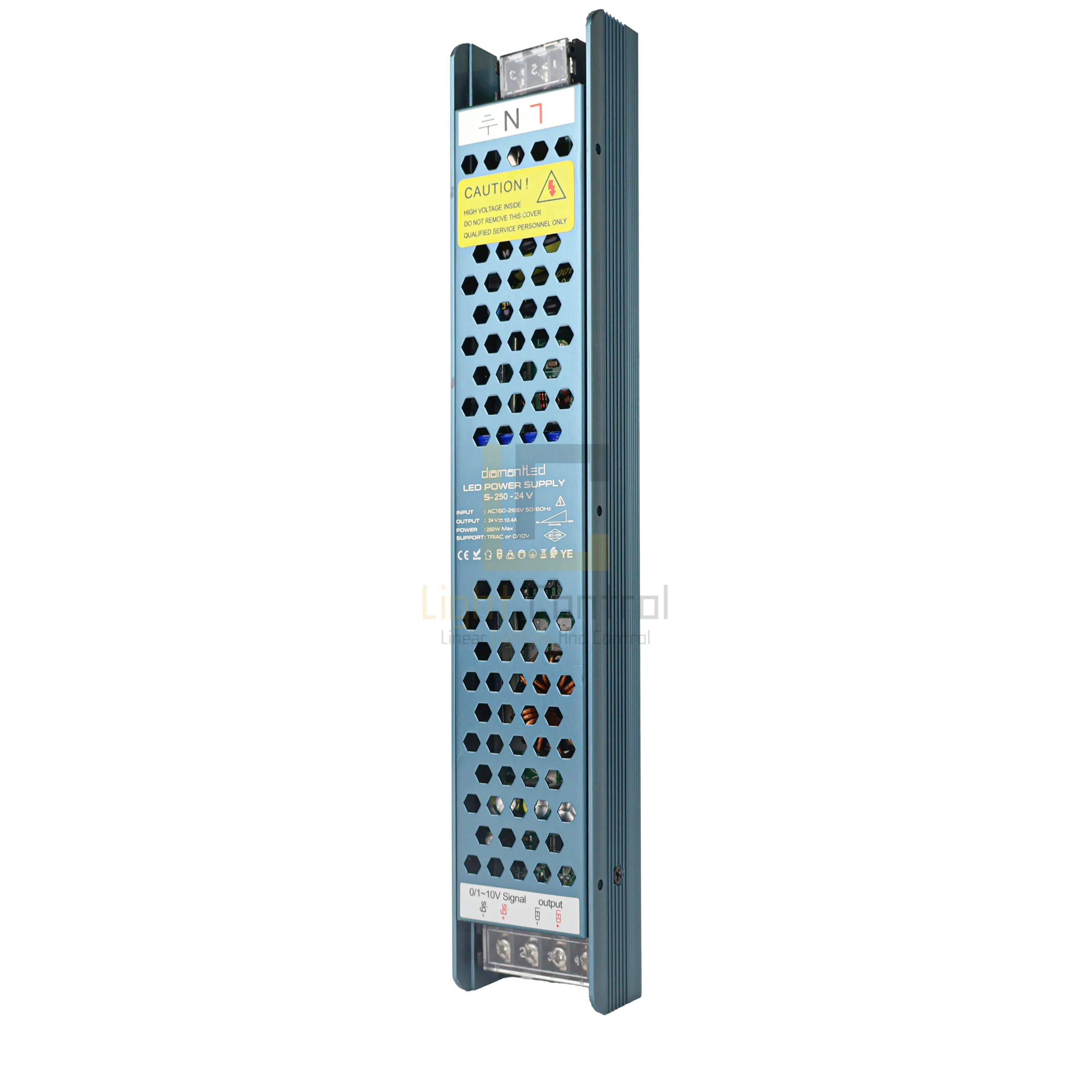

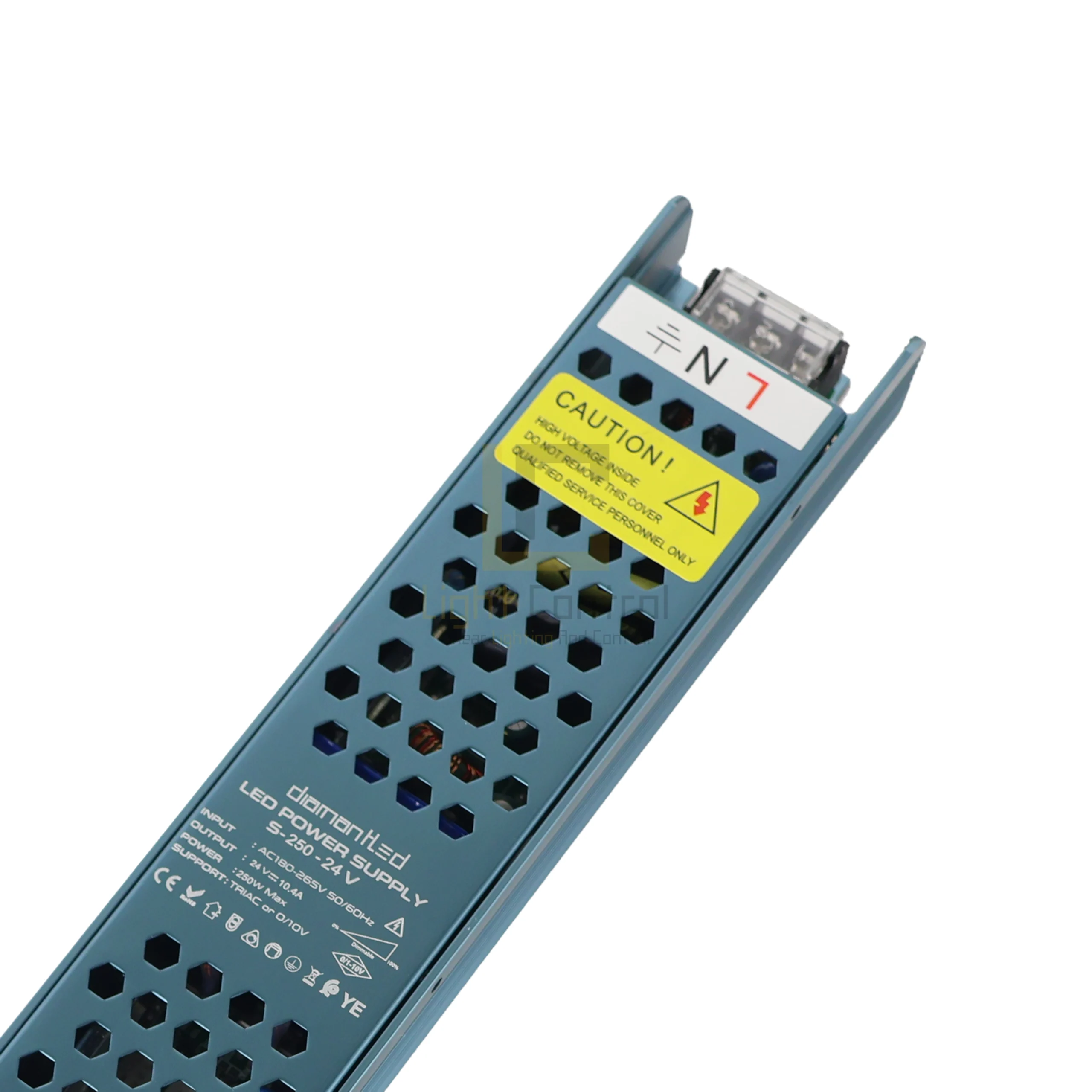

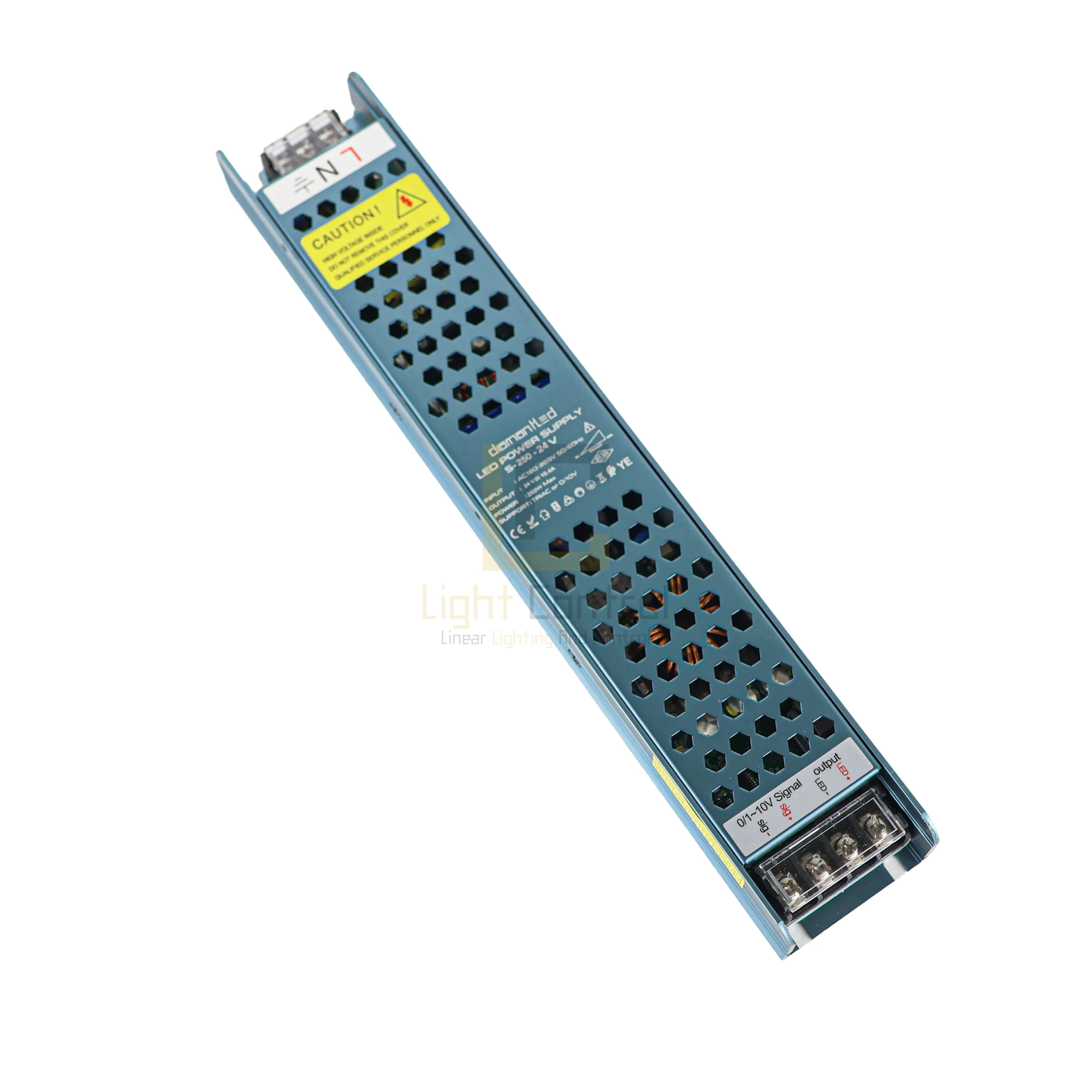

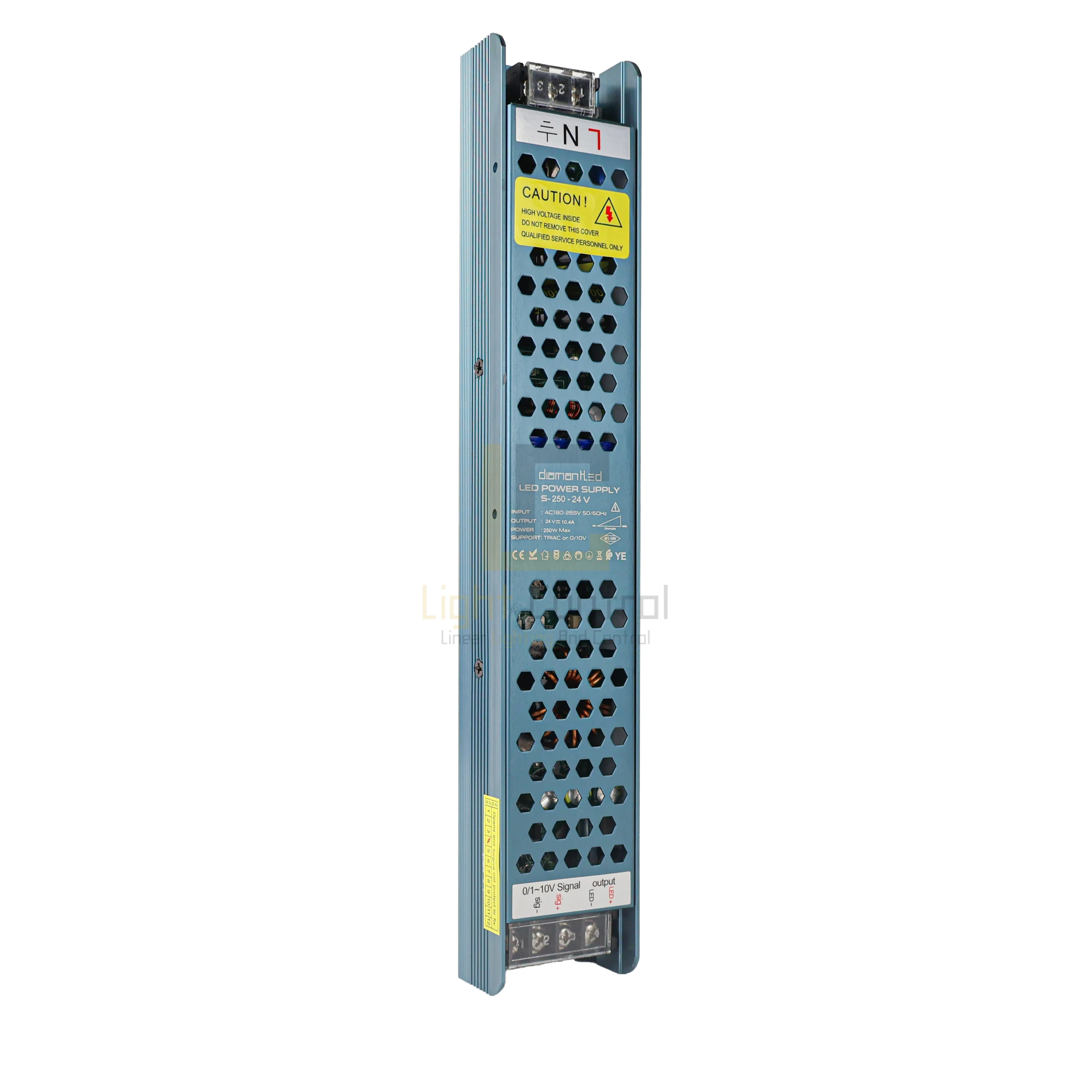

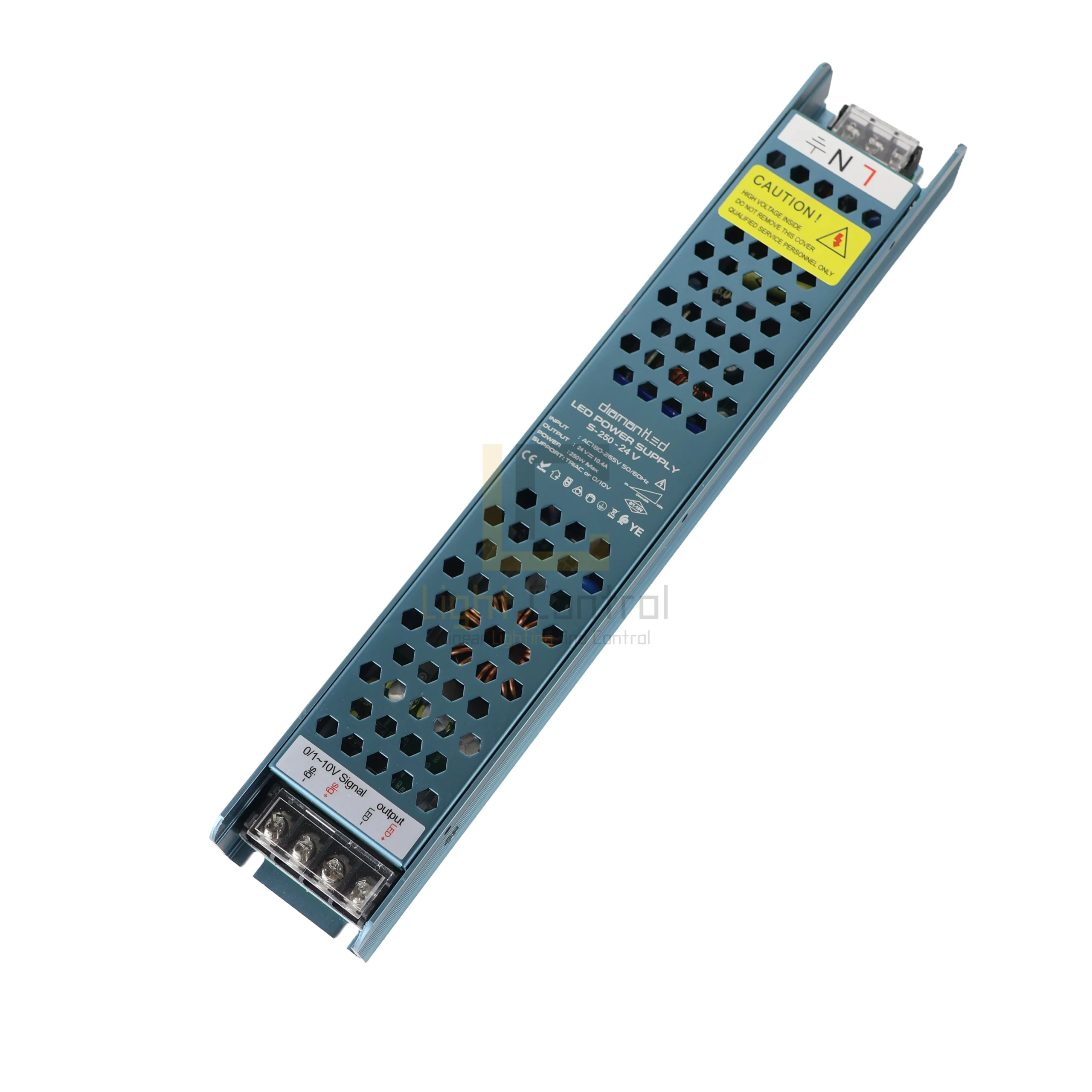

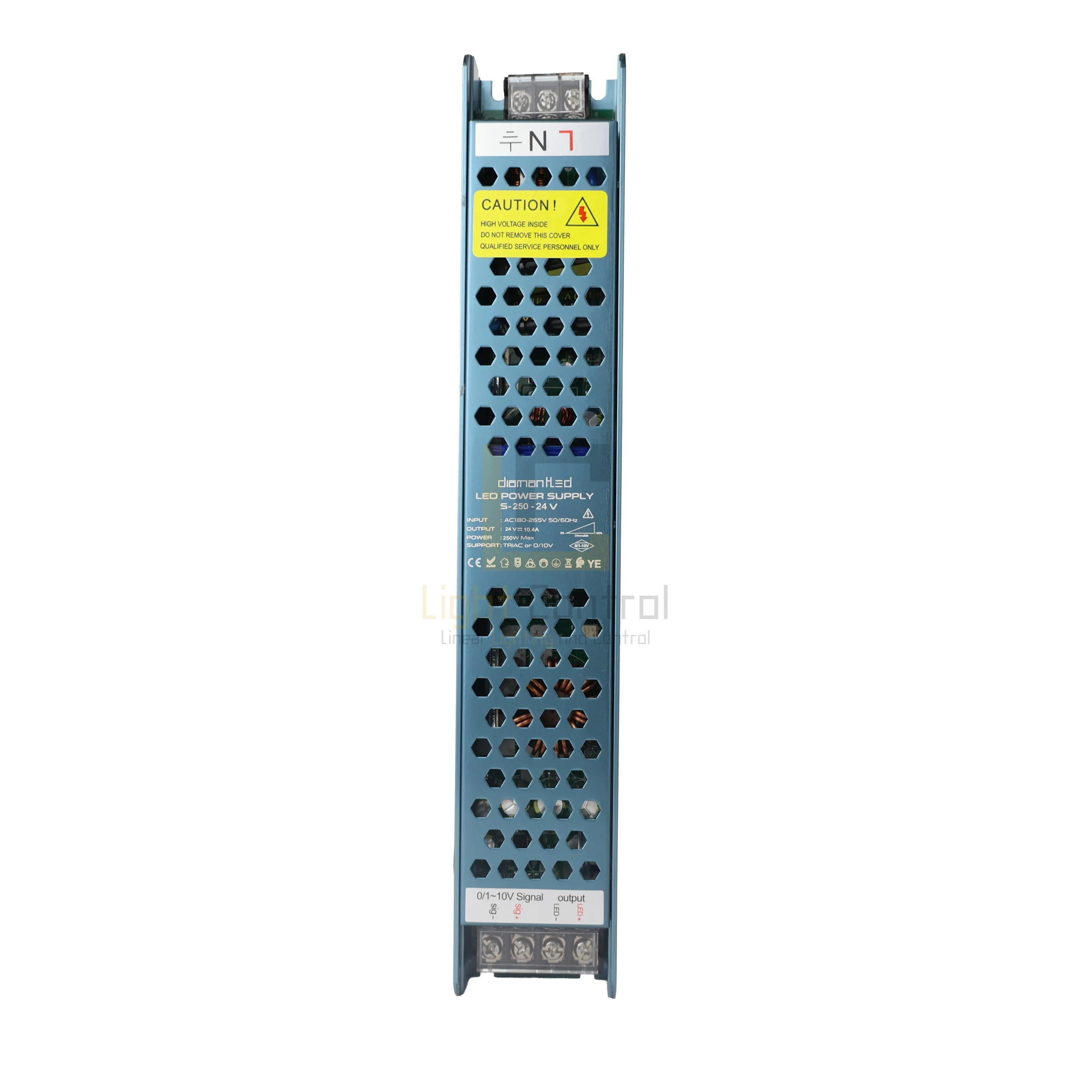

LED Transformer 250W 24V Dimmable TRIAC 0-10V NV
Power: 250W
Output: 24V DC
Dimming: TRIAC & 0-10V dimmable
Applications: LED strips, neon LED, 24V LED luminaires
Installation: Indoor use — non-waterproof model
Wiring: Screw terminal block (220V input / 24V output)
Safety: Stable regulated voltage — protection against over- and under-voltage
Recommended use: Professional installation — recessed mounting advised
LED Transformer 250W 24V Dimmable TRIAC
LED Transformer 250W 24V Dimmable TRIAC 0-10V NV is a high-performance power supply designed for advanced LED lighting systems. It supports dual dimming technologies — TRIAC (phase-cut) and 0-10V analog control — giving you flexible and precise control over light intensity.
With a total output of 250W, this transformer can power long LED strip runs, powerful dimmable LED fixtures, or multiple light zones, making it perfect for residential, commercial, and architectural lighting projects.
The 24V output ensures compatibility with a wide range of LED products, while the passive cooling system ensures silent operation with long-lasting durability.
⚙️ Technical Specifications:
Power Output: 250W
Input Voltage: 100–240V AC
Output Voltage: 24V DC
Output Current: Up to 10.4A
Dimmable: Yes – TRIAC & 0-10V compatible
Cooling: Passive (silent, fanless)
Housing Material: Durable aluminum
Protections: Overvoltage, overload, short-circuit, overheat
Recommended Use: Indoor (or protected outdoor depending on version NV)
✅ Ideal Applications:
Dimmable 24V LED strips
LED panels and ceiling lights
Ambient architectural lighting
Smart home lighting systems
Commercial and retail environments
Hospitality (hotels, lobbies, restaurants)
This transformer is a reliable, safe, and smart power source for anyone needing precise lighting control in premium installations.
| Current | 10.41A |
|---|---|
| Output (V) | DC 24V |
| Dimmable | Oui, TRIAC OR 0-10V |
| Brand | DiamantLED |
| Dimensions | 287x49x21 mm |
| Matérial | Aluminium |
| Frequency | 50/60HZ |
