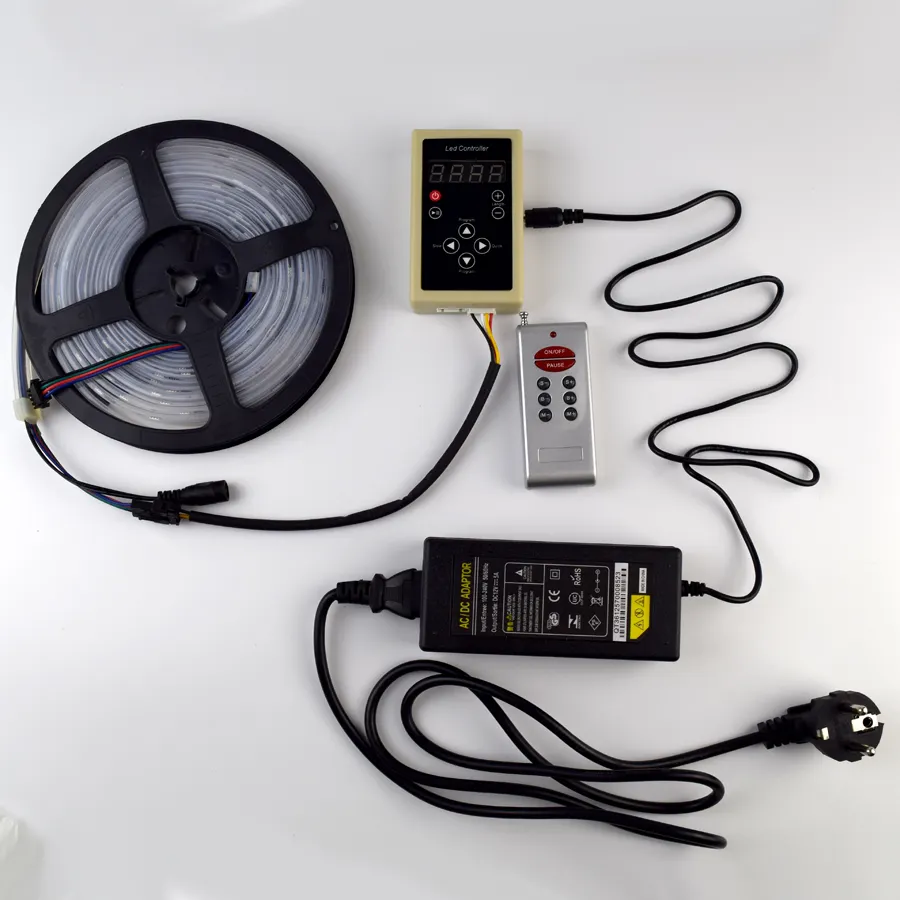

Magic ribbon controller color controller suitable for SPI signal direct drive LED applications; With 256*256*256 gray level, length on and off memory function, built-in a variety of models to choose from, and can through the RF remote control to adjust all kinds of dynamic lighting changing effect. Can be applied to advertising light box, stage, home decoration, etc. But this controller belongs to upgrade edition, can support ten different IC band, supports the band line sequence switch function, at the same time supporting the maximum pixel points is 2048.
features :
Testing:
Continuously pressing the AUTO button 5 times until LED is safe, release the AUTO button to into the switching mode in red, green, blue, yellow, purple, cyan and white, witch to test the yours LED.
Correspondent:
Continuously pressing the MATCH button 5 times until LED flash white quickly to match the remote with the receiving controller. Pressing the MATCH button for 5 times until LED flash white slowly to un-match;
Rearrange RGB:
Different kinds of LEDs, the R G B keys may not match your LED perfectly, rearrange them if necessary. Continuously pressing the FRAME button 5 times until LED flashes in white once and then turn into all white, Pressing the R button until LED is red, pressing the
G button until the LED is green, pressing the B button until the LED is blue, then press the FRAME button once to confirm your setting;
Adjust Pixel Number:
The default setting of the number of controlled pixel is 600. Continuously pressing the FRAME button 5 times until LED flash once and turn all white, pressing MODE+ to add pixels, pressing MODE- to decrease pixels, (each press add or decrease 60 pixels) then press the FRAME button to confirm your setting, Can be regulated to up to 2048 pixels, The minimum number is 300 pixels.
Catch :
When in AUTOMATIC mode, pressing FRAME button once, and then press MATCH button once to catch the Current pattern to stay and operate circularly.
Do not hesitate to contact us for any additional information Tel.: 05 22 23 69 63
